金屬軟管具有良好的柔韌性，抗拉伸；防水耐腐蝕、耐高溫等優秀特性，是生活和工業中不可或缺的五金部件。通用金屬軟管直徑規格從3mm-150mm，小口徑金屬軟管直徑為3mm~25mm，用于光學傳感線路，工業傳感線路保護。

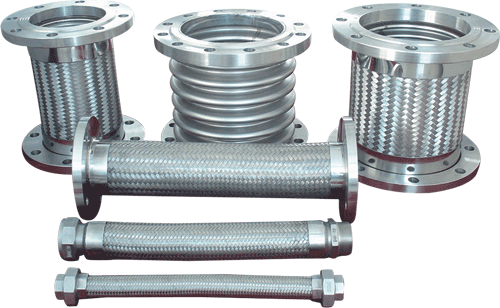

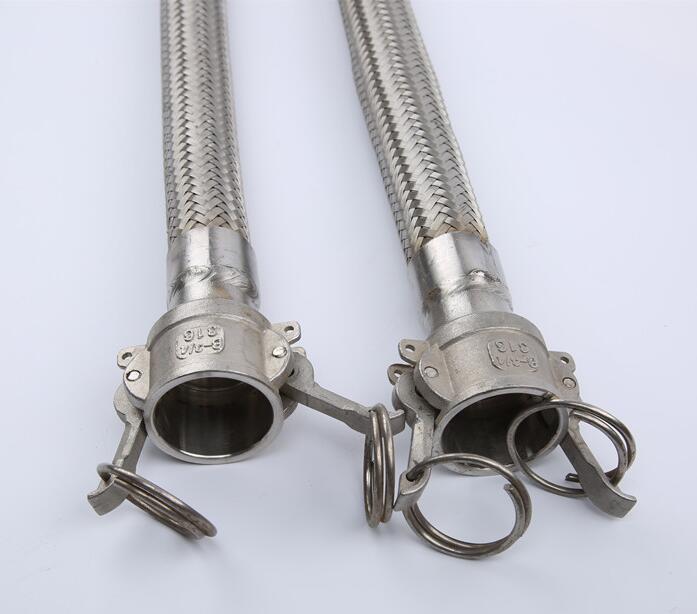

金屬軟管的結構為不銹鋼制波紋管外編一層或多層鋼絲或者不銹鋼網套，兩端配有接頭。
金屬軟管的規格有很多從DN10mm到DN800mm，壓力值從0.25MPa到6.0MPa，下面列出了各類金屬軟管的型號表：
金屬軟管規格型號參數
|
Type |
Inch |
(mm)I.D. |
(mm)O.D. |
(mm)O.D.+PVC |
Packing(M) |
|
1 |
- |
4.0 |
6.0 |
7.0 |
100 |
|
2 |
- |
4.6 |
6.6 |
8.0 |
100 |
|
3 |
- |
5.0 |
7.0 |
8.0 |
100 |
|
4 |
- |
5.4 |
7.8 |
9.5 |
100 |
|
5 |
- |
5.9 |
8.4 |
10.0 |
100 |
|
6 |
- |
6.6 |
9.0 |
10.0 |
100 |
|
7 |
1/4 |
9.5 |
12.5 |
13.2 |
50 |
|
8 |
3/8 |
12.5 |
15.7 |
17.7 |
50 |
|
9 |
1/2 |
16.1 |
19.5 |
21.3 |
50 |
|
10 |
- |
19.1 |
22.2 |
24.5 |
50 |
|
11 |
3/4 |
20.8 |
24.3 |
26.7 |
40 |
|
12 |
- |
22.0 |
25.7 |
28.0 |
40 |
|
13 |
1 |
26.0 |
30.0 |
33.0 |
30 |
|
14 |
1-1/4 |
34.0 |
39.0 |
42.2 |
30 |
|
15 |
1-1/2 |
39.0 |
44.0 |
47.8 |
20 |
|
16 |
2 |
51.0 |
56.0 |
59.4 |
10 |
|
17 |
2-1/2 |
63.0 |
67.5 |
72.5 |
10 |
包塑金屬軟管規格表
|
型式 |
通徑(A) |
尺寸 |
彎曲半徑 |
10cm長伸縮反力 |
質量(Kg/m) |
一層網軟管使用壓力 | |||||
|
內徑 |
外徑 |
最小 |
反復 |
(Kgf/mm) |
(N/mm) |
軟管 |
軟網 |
(Kgf/cm2) |
(Mpa) | ||
|
HO |
8 |
7.4 |
11.0 |
24 |
180 |
6.7 |
66 |
0.1 |
0.1 |
82 |
8.0 |
|
10 |
10.5 |
14.5 |
27 |
210 |
6.7 |
66 |
0.2 |
0.1 |
55 |
5.4 | |
|
15 |
13.7 |
18.1 |
35 |
250 |
7.3 |
72 |
0.2 |
0.2 |
51 |
5.0 | |
|
20 |
20.0 |
25.0 |
45 |
330 |
8.2 |
80 |
0.3 |
0.2 |
37 |
3.7 | |
|
25 |
26.2 |
32.2 |
45 |
340 |
8.3 |
81 |
0.5 |
0.3 |
25 |
2.5 | |
|
32 |
32.5 |
39.5 |
45 |
360 |
7.9 |
77 |
0.6 |
0.4 |
32 |
3.1 | |
|
40 |
40.0 |
48.4 |
50 |
410 |
8.7 |
85 |
0.8 |
0.6 |
27 |
2.6 | |
|
50 |
51.8 |
61.0 |
70 |
550 |
16.1 |
158 |
1.2 |
0.8 |
19 |
1.8 | |
|
HB |
8 |
7.8 |
11.0 |
25 |
190 |
10.4 |
102 |
0.1 |
0.1 |
79 |
7.7 |
|
10 |
10.5 |
15.2 |
25 |
190 |
10.4 |
102 |
0.2 |
0.1 |
80 |
7.8 | |
|
15 |
13.4 |
18.5 |
40 |
260 |
20.0 |
196 |
0.2 |
0.2 |
55 |
5.4 | |
|
20 |
19.1 |
25.6 |
40 |
270 |
15.5 |
152 |
0.3 |
0.2 |
36 |
3.5 | |
|
25 |
25.4 |
32.8 |
50 |
290 |
14.7 |
144 |
0.5 |
0.3 |
24 |
2.4 | |
|
32 |
32.5 |
40.6 |
50 |
340 |
15.3 |
150 |
0.6 |
0.4 |
30 |
2.9 | |
|
40 |
38.5 |
47.6 |
60 |
430 |
23.7 |
232 |
0.8 |
0.6 |
27 |
2.6 | |
|
50 |
51.0 |
61.5 |
75 |
540 |
33.5 |
328. |
1.2 |
0.8 |
18 |
1.8 | |
|
RV |
20 |
20.4 |
30.2 |
45 |
- |
0.4** |
3.9 |
- |
- |
- |
- |
|
25 |
26.0 |
37.4 |
50 |
- |
0.4** |
3.9 |
- |
- |
- |
- | |
|
40 |
40.0 |
56.0 |
85 |
- |
0.4** |
3.9 |
- |
- |
- |
- | |
|
50 |
54.0 |
73.0 |
120 |
- |
0.4** |
3.9 |
- |
- |
- |
- | |
|
BF |
15 |
12.6 |
16.0 |
39 |
- |
- |
- |
0.1 |
- |
48 |
4.7 |
|
20 |
16.2 |
20.4 |
60 |
- |
- |
- |
0.2 |
- |
47 |
4.6 | |
波紋管金屬軟管型號規格
| 螺紋規格 | 金屬波紋軟管正常內徑 | 波紋金屬軟管國際內徑 | 法蘭金屬管內徑 |
| 2分 | 8mm | ||
| 3分 | 8mm | ||
| 4分 | 10mm | 15mm | 14mm |
| 6分 | 15mm | 20mm | 19mm |
| 1寸 | 20mm | 25mm | 24mm |
| 1寸2 | 25mm | 32mm | 31mm |
| 1寸5 | 32mm | 40mm | 41mm |
| 2寸 | 40mm | 50mm | 49mm |
| 2寸5 | 50mm | 65mm | 66mm |
| 3寸 | 65mm | 80mm | 88mm |
| 4寸 | 80mm | 100mm | 110mm |
鍍鋅金屬軟管型號規格表
| 公稱內徑 d (mm) | 最小內徑 dmin(mm) | 外徑及 允許偏差 D(mm) | 節距及 允許偏差 t(mm) | 鋼帶厚度 s (mm) | 自然彎曲 直徑 R (mm) | 軸向拉力 kgf (不小于) | 理論重量 (g/m) |
| (4) (6) 8 10 12 (13) (15) (16) (19) 20 (22) 25 (32) 38 51 64 75 (80) 100 |
3.75 5.75 7.70 9.70 11.65 12.65 14.65 15.65 18.60 19.60 21.55 24.55 31.50 37.40 50.00 62.50 73.00 78.00 97.00 |
6.20±0.25 8.2±0.25 11.00±0.30 13.50±0.30 15.50±0.35 16.50±0.35 19.00±0.35 20.00±0.35 23.30±0.40 24.30±0.40 27.30±0.45 30.30±0.45 38.00±0.50 45.00±0.60 58.00±1.00 72.50±1.50 83.50±2.00 88.50±2.00 108.50±3.00 |
2.65±0.40 2.70±0.4 4.00±0.4 4.70±0.45 4.70±0.45 4.70±0.45 5.70±0.45 5.70±0.45 6.40±0.50 6.40±0.50 8.70±0.50 8.70±0.50 10.50±0.60 11.40±0.60 11.40±0.60 14.80±0.60 14.20±0.60 14.20±0.60 14.20±0.60 |
0.25 0.25 0.30 0.30 0.30 0.30 0.35 0.35 0.40 0.40 0.40 0.40 0.45 0.50 0.50 0.60 0.60 0.60 0.60 |
30 40 45 55 60 65 80 85 95 100 102 115 140 160 190 280 320 330 340 |
24 36 48 60 72 78 90 96 114 120 132 150 192 228 306 384 450 480 600 |
49.6 68.6 111.7 139.0 162.3 174.0 233.8 247.4 326.7 342.0 375.1 420.2 585.8 804.3 1054.6 1522.5 1841.2 1957.0 2420.4 |
耐高溫蒸汽金屬軟管規格表
| 內徑mm | 鋼絲編織層數 | 飽和蒸氣壓力 MPa(kgf/cm2) |
對應最小彎曲半徑 mm |
對應參考外徑 mm |
對應參考重量 mm |
長度 | ||
| 公稱尺寸 | 公差 | m | 公差 mm | |||||
| 13 | ±0.8 | 1 | 0.79 | 150 | 25 | 0.55 | 20 | ±70 |
| 16 | ±0.8 | 1 | 170 | 28 | 0.65 | 20 | ±70 | |
| 19 | ±0.8 | 1 | 210 | 31 | 0.75 | 20 | ±70 | |
| 22 | ±0.8 | 1 | 240 | 34 | 0.80 | 20 | ±70 | |
| 25 | ±0.8 | 1 | 270 | 37 | 1.00 | 20 | ±70 | |
| 32 | ±1.2 | 1 | 350 | 44 | 1.20 | 20 | ±70 | |
| 38 | ±1.2 | 1 | 400 | 50 | 1.30 | 20 | ±70 | |
不銹鋼金屬軟管型號表
| 名稱 | 內徑-? min. (mm) |
內徑-? max. (mm) |
外徑? min. (mm) |
外徑? max. (mm) |
最小彎曲半徑 (mm) |
工作壓力 20°C (靜態) (bar) |
每米重量 (kg) |
|---|---|---|---|---|---|---|---|
| JFLO 010 | 9,7 | 10,3 | 15,2 | 15,8 | 50 | 125,0 | 0,260 |
| JFLO 013 | 12,9 | 13,5 | 18,4 | 19,0 | 65 | 105,0 | 0,330 |
| JFLO 016 | 15,7 | 16,3 | 21,7 | 22,3 | 80 | 100,0 | 0,430 |
| JFLO 020 | 19,2 | 19,8 | 26,6 | 27,2 | 100 | 90,0 | 0,565 |
| JFLO 025 | 25,0 | 26,0 | 32,4 | 33,4 | 125 | 80,0 | 0,750 |
| JFLO 032 | 31,5 | 32,5 | 38,9 | 39,9 | 150 | 64,0 | 0,855 |
| JFLO 040 | 38,0 | 39,0 | 45,4 | 46,4 | 200 | 53,0 | 1,100 |
| JFLO 050 | 50,4 | 51,6 | 57,8 | 59,0 | 250 | 35,0 | 1,340 |
| JFLO 065 | 63,5 | 65,5 | 74,0 | 76,0 | 320 | 25,0 | 2,310 |
| JFLO 080 | 75,5 | 77,5 | 87,0 | 89,0 | 380 | 20,0 | 2,800 |
